How Does a Self Loader Concrete Mixer Work

A self-loading concrete mixer, also known as a self loader concrete mixer or a self-propelled concrete mixer, is a versatile machine designed to efficiently produce and transport concrete on construction sites. Here's an overview of how a self-loading concrete mixer works:

1. Loading of Raw Materials:

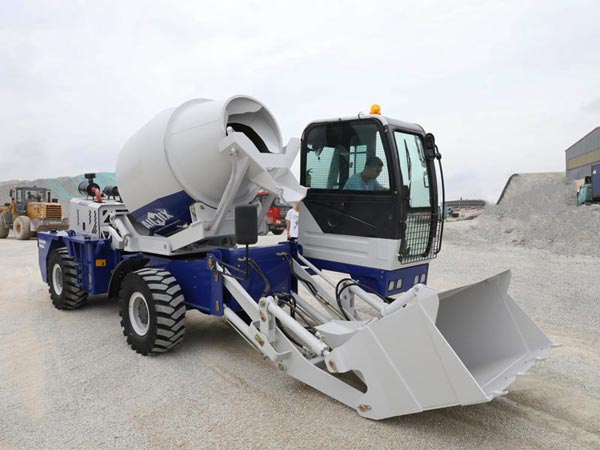

• The self loader concrete mixer is equipped with a bucket or a shovel at the front end. The operator uses this mechanism to load aggregates (such as sand, gravel, and stone), cement, and water into the mixing drum.

2. Mixing Process:

• Once the raw materials are loaded, the self-loading concrete mixer starts the mixing process. It has an onboard mixing drum that rotates to homogeneously blend the materials, producing fresh concrete.

3. Transportation:

• After mixing, the concrete is ready for transportation. The self loading mixer is self-propelled, meaning it has its own engine and wheels. The operator drives the mixer to the desired location on the construction site.

4. Unloading:

• Upon reaching the construction site, the operator positions the self-loading concrete mixer at the designated area. The mixing drum can be rotated in the opposite direction to discharge the concrete through a chute or a conveyor directly onto the desired location.

Key Features and Components:

1. Steering System:

• Self-loading concrete mixers are equipped with a steering system, allowing the operator to easily maneuver the machine around the construction site.

2. Mixing Drum:

• The mixing drum is a key component where the raw materials are blended to produce concrete. It is typically mounted on the rear of the vehicle and can rotate in both loading and discharge directions.

3. Loading Mechanism:

• The loading mechanism, often a shovel or a bucket, facilitates the efficient loading of aggregates and other materials into the mixing drum.

4. Control Panel:

• A control panel is provided to the operator for monitoring and controlling the various functions of the self loader concrete mixer, including the mixing process and discharge.

5. Engine:

• Self-loading concrete mixers are equipped with a dedicated engine that powers both the vehicle and the mixing drum. This engine can be diesel or electric, depending on the model.

Advantages:

1. Versatility: A self-loading concrete mixer can load, mix, transport, and discharge concrete, providing a comprehensive solution in a single machine.

2. Efficiency: The self-propelled nature of the mixer eliminates the need for additional equipment for transportation, improving overall efficiency.

3. Time-Saving: The ability to produce and transport concrete on-site reduces the time and effort required for multiple handling and transportation steps.

4. Cost-Effective: Self-loading concrete mixers can contribute to cost savings by streamlining the concrete production and delivery process.

In summary, a self loader concrete mixer is a highly efficient and versatile machine that simplifies the process of producing and delivering concrete on construction sites. Its self-loading and self-propelled features make it a popular choice for various construction applications.
